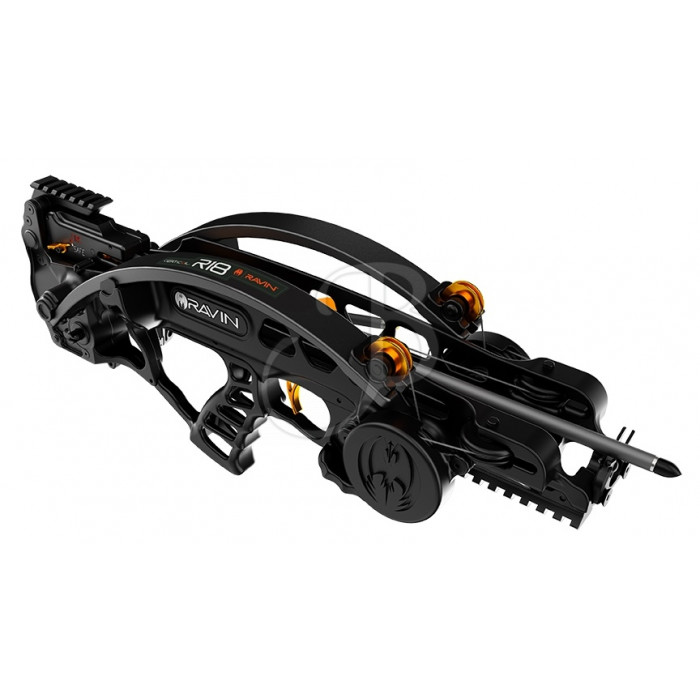

Utilizing the new proprietary VertiCoil Cam System, the R18 is the shortest Ravin ever created at just 18 inches in length. The VertiCoil Cam System rotates the ultra-small cams 720 degrees, coiling the strings and cables around the cam and cam axle allowing an axle-to-axle height of just 1.3 inches cocked or 4.1 inches when uncocked, with a static overall width of 4.75”. The R18 is a takedown style crossbow with limbs that expand vertically, shooting 330 feet per second. The R18 includes a detachable stock with an integrated removable quiver system, making the total length roughly 25 inches when fully in-tact. The unique 6-pound crossbow features the new Ravin 3-Dot Reflex Sight for easy target acquisition, and includes the Ravin built-in cocking mechanism, allowing for an easy draw. The R18 comes in black.
330 FPS
Weight: 6 LBS
Length:18” Without Stock, 25” With Stock
Height Axle to Axle Cocked: 1.3”
Height Axle to Axle Uncocked: 4.1”
Overall Width: 4.75”
Power-Stroke: 13”
Kinetic Energy: 85 FT LBS
Draw Effort: 12 LBS
Draw Weight: 250#
VertiCoil Cam System
Detachable Stock/Quiver
Fully Assembled/Pre-Tuned
3 – 16” .003 350 Grain R18 Arrows with Field Points
1 – Removable Draw Handle
Ravin 3 Dot Reflex Sight
Built-In Cocking Mechanism
Anti-Dry Fire/Auto Safety
Built-in Sling Mounts
IMPORTANT NOTICE: RAVIN CROSSBOWS ARE ONLY COMPATIBLE WITH RAVIN BOLTS!
